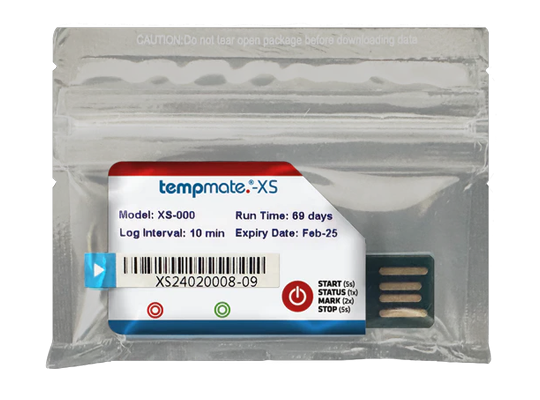

tempmate-XS Single Use USB Temperature Data Logger
The latest version of the tempmate single use temperature data loggers is now here! It is still small, light, and waterproof. As the USB connection is now available, alarm points are now user-configurable when used with the free-of-charge tempbase software. The tempmate-XS has some significant features, such as:
- Accuracy of +/-0.5°C
- PDF Report
- Battery shelf life of 12 months
- Run time 70 days with 10 minute logging interval
- Data capacity of 10,000 measurements
application examples
- Temperature Sensitive Goods In Transit
- Cold Chain
- Clinical Trials
- Monitor Plants In Transit
specification
- Log Duration: 70 Days
- Recording Option: Single Use
- Shelf Life: 12 months from production. Minimum 8 months on delivery. Please contact us if longer shelf life is required.
- Waterproof: IP67 = Dust tight. Protected against temporary immersion in water.
- Temperature Range: -10°C to +70°C
- Accuracy: ±0.5°C from -10°C to +40°C ±1.0°C outside of this range
- Resolution: 0.1°C
- Sample Rate: 10 Minutes as standard (others available on request)
- IP Rating: IP67 dust tight and protected against water ingress at depths between 15cm and 1m for 30 minutes
- Number of Readings Stored: 10,000
- Start Delay: Yes.
- Reusable Memory When Full: No
- Report Format: PDF
- Start / Stop function: No, once stopped the data logger cannot be restarted.
- Alarm Type: Single high & low alarms. If alarm setpoints are not specified, no alarms will be generated.
- Time & Date Format: Aa standard all readings are stored in GMT irrespective of timezone.
- Package Material: PE+PET
- Weight: 8.6g
- Dimensions: 48mm (L) x 30mm (W) x 9mm (H)
To view the full specification please download the datasheet below.
download
description
The tempmate-XS single use USB temperature data logger is ideal for monitoring the temperature of cold supply chain shipments that are in transit. Recordings are started by pressing the start button for 5 seconds. The data logger is then placed inside the carton and despatched. At the receiving end, the temperature data logger is taken from the package and removed from the protective wrapper. It is placed into the USB slot on a computer and the PDF file is available as if it was on a memory stick. No interface cables or software are required. Compliant to BS EN 12830:2018. Labelling per IATA's dangerous goods regulations is not required for tempmate-XS temperature data loggers.
tempmate-XS single use USB temperature data loggers are available individually or in packs of 5, 10, 20, 60 or 100pcs. These are available ex-stock and can be dispatched the same working day if the order is received by 12 noon.
