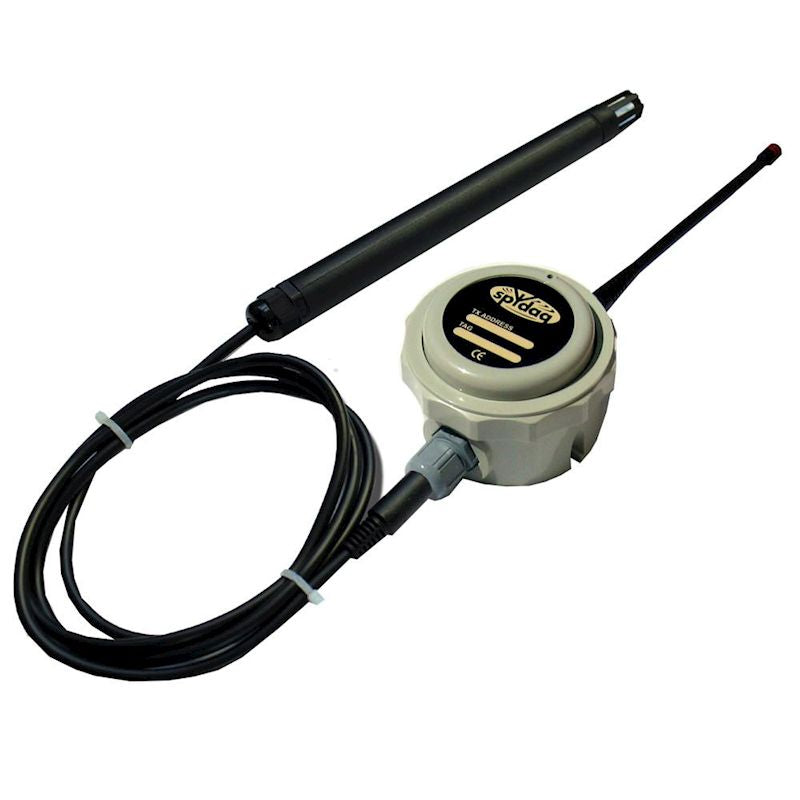

Wireless Temperature And Relative Humidity Sensor
Wireless transmitter with an internal temperature sensor to measure ambient temperature and a flying lead temperature and relative humidity sensor with 1.5m cable.
The enclosure is IP65 rated and an IP65 rated gland is included. The transmitter is battery powered for up to six years.
application examples
- Environmental Monitoring
- Heating & Ventilation
- Museums
specification
- Power : Internal Lithium Primary cell. 3.7V AA Size
- Battery Life : 6 yrs life minimum @ 10 min transmission rate
- Measuring Range : -30°C to +75°C (-22°F to +167°F), 0 to 100%RH
- Accuracy : ±0.5°C from 0°C to +50°C. ±1°C outside of this range, ±2.5%RH
- Transmission Rate : Selectable: 20 secs, 1 min, 10 min or 30 min (10 minute recommended)
- Transmit Power : 10mW
- Transmission Range : Typically 400m line of sight.
- Transmission Frequency : 433MHz
- Outdoor Use : No
- Material : ABS
- Dimensions :
- Enclosure: 108mm Diameter x 60mm Deep.
- Sensor: 20mm Diameter x 187mm Long with 1.5m cable
- Antenna: 172mm Long
- Warranty : 3 Years
To view the full specification please download the datasheet below.
description
SPYDAQ-1009-TH Wireless Temperature & Humidity Sensor
Wireless transmitter with an internal temperature sensor to measure ambient temperature and a flying lead temperature and relative humidity sensor with 1.5m cable.
The enclosure is IP65 rated and an IP65 rated gland is included. The transmitter is battery powered for up to six years.
