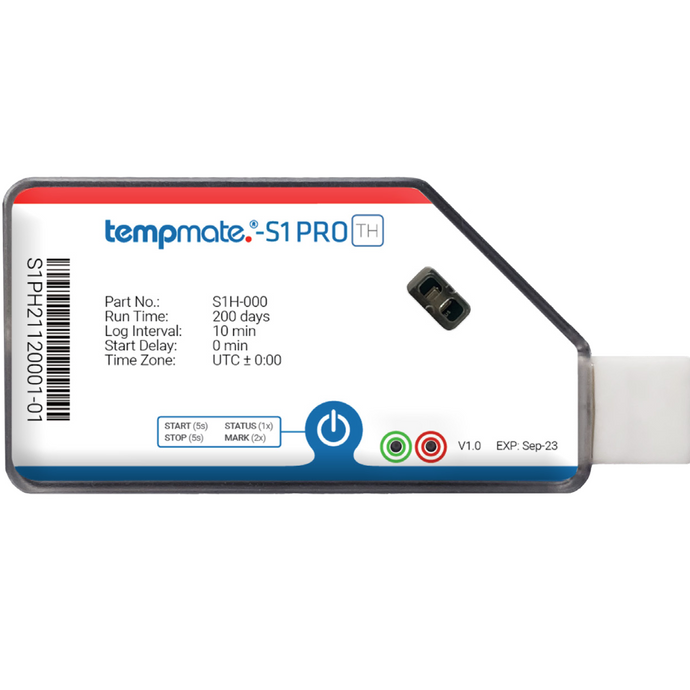

tempmate-S1-PRO Single Use USB Temperature & Humidity Data Logger
tempmate-S1-PRO Single Use USB Temperature & Humidity Data Logger


tempmate-S1-PRO Single Use USB Temperature & Humidity Data Logger

The latest version of the tempmate-S1 is now here! Now with temperature & humidity. It is still small, light, waterproof but now in a hard plastic shell. The tempmate-S1-PRO has a number of significant improvements, such as:

  • Temperature Accuracy of ±0.3°C
  • Humidity accuracy of ±3.0%
  • PDF and CSV file format stored on the device
  • Increased battery life from 110 days to a minimum of 200 days (depending on sample rate)
  • Increased data capacity from 31,200 to 32,000 measurements
  • NFC enabled technology meaning calibration validation certificate is stored on the data logger and can be downloaded when needed
  • Made from recycled plastics
  • Data can be uploaded to the tempmate cloud and can be accessed and downloaded from anywhere in the world
  • Password protection on each device is available


The following parameters are now user configurable:

  • Three high temperature alarms
  • Three low temperature alarms
  • Three high humidity alarms
  • Three low humidity alarms
  • Alarm delay in minutes
  • Sample rate
  • Time zone
  • Temperature units
  • Start delay


Example of the onboard configuration software:

Tempmate S1-PRO Configuration Software


Temperature only version is also available.

application examples

  • Temperature & Humidity Sensitive Goods In Transit
  • Cold Chain
  • Clinical Trials
  • Monitor Plants In Transit

specification

  • Log Duration: 200 Days
  • Recording Option: Single Use
  • Shelf Life: 24 months from production. Minimum 18 months on delivery. Please contact us if longer shelf life is required.
  • IP Rating: IP64 = Dust tight. Protected against splashing water.
  • Temperature Range: -30°C to +70°C
  • Humidity Range: 0 to 100%
  • Temperature accuracy: ±0.3°C
  • Humidity accuracy: ±3.0%
  • Sample Rate: 10 Minutes as standard (others available on request)
  • Start Delay: Yes, up to 43,200 minutes or specifed date and time.
  • Number of Readings Stored: 32,000
  • Reusable Memory When Full: No
  • Start / Stop function: No, once stopped the data logger cannot be restarted.
  • Alarm Type: Single high & low alarms. Alarm setpoints can be set using the onboard configuration software. If alarm setpoints are not specified, no alarms will be generated.
  • Time & Date Format: As standard all readings are stored in GMT irrespective of timezone. Timezone can be programmed using the onboard configuration tool.
  • Weight: 15.2g
  • Dimensions: 86mm (L) x 40mm (W) x 9mm (H)
  • Response Time (T90): 3 minutes in air

To view the full specification please download the datasheet below.

description

The tempmate-S1 single use USB temperature data logger is ideal for monitoring the temperature and humidity of cold supply chain shipments that are in transit. Recordings are started by pressing the start button. The data logger is then placed inside the carton and despatched. At the receiving end, the temperature data logger is taken from the package and the cap removed from the USB connector. It is then placed into the USB slot on a computer and the PDF file is available as if it was on a memory stick. No interface cables or software are required. Compliant to BS EN 12830:2018. Labelling per IATA's dangerous goods regulations is not required for tempmate-S1-PRO temperature data loggers.

tempmate-S1-PRO single use USB temperature data loggers are available individually or in packs of 5, 10, 20, 60 or 100pcs. These are available ex-stock and can be dispatched the same working day if the order is received by 12 noon.

select your product option

Quantity
Individual Single Use USB Temperature Data Logger £27.00 Ex.VAT
Pack of 5 Single Use USB Temperature Data Loggers £121.00 Ex.VAT
Pack of 10 Single Use USB Temperature Data Loggers £230.00 Ex.VAT
Pack of 20 Single Use USB Temperature Data Loggers £431.00 Ex.VAT
Pack of 60 Single Use USB Temperature Data Loggers £1,155.00 Ex.VAT
Pack of 100 Single Use USB Temperature Data Loggers £1,470.00 Ex.VAT
