SpYdaq is our low-cost wireless temperature and humidity monitoring system, ideal for tracking air temperature in various environments.

SpYdaq offers an affordable alternative to hard wired monitoring systems. It allows users to deploy sensors in various locations without the restrictions and cost of hard wiring, with the benefits of monitoring results from a PC, from anywhere in the world as long as you can connect to the internet to access the software.

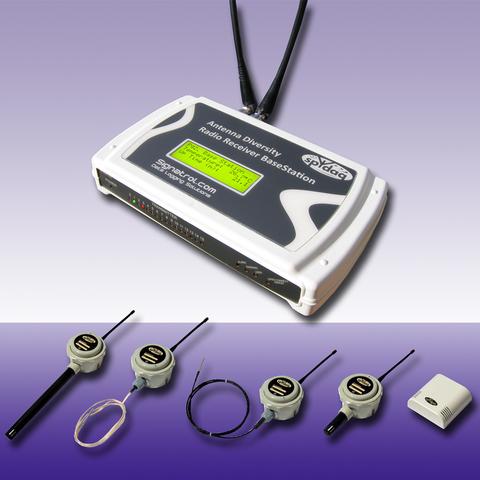

At the heart of the SpYdaq system is a Base station which can receive data from up to 16 remote transmitters and passes it to a PC either via USB, Modbus RTU or by GPRS direct to the SpYdaq cloud.

Each remote transmitter can have up to three inputs – temperature, relative humidity and universal – and sends it via a licence-free ISM radio band using a sophisticated data redundancy system (patented) to ensure virtually error free data acquisition. Antenna diversity is another feature that is also provided and which enables multiple antennas to be connected to ensure reliable radio connection from diverse areas

Users can choose from up to 16 transmitters to be located at points for monitoring. Types available include a range of room sensors, duct sensors, external sensors, immersion sensors, pipe mount sensors and fridge/freezer/oven sensors, which can be combined to suit the required application.

A choice of operating frequencies means that four systems can be run concurrently side by side providing up to 64 transmitters, providing up to 128 temperature measurement points if the SPYDAQ-1010 dual transmitter is used. for even larger applications

SpYdaq’s wide range of inputs means that by connecting to the appropriate sensor, virtually any parameter can be measured and accurately logged.

The Base station also checks locally for alarm conditions via its inbuilt audio and visual alarms. Alarming locally means that any potential trouble spots can be identified quickly and corrective action taken, often saving vulnerable goods from damage or rapid decay. SMS alarm messages and email alerts can also be automatically sent to advise users remotely that an alarm has occurred.

If you would like more information on how SpYdaq can help your business, please contact us on 01684 218528 or email sales@signatrol.com.
