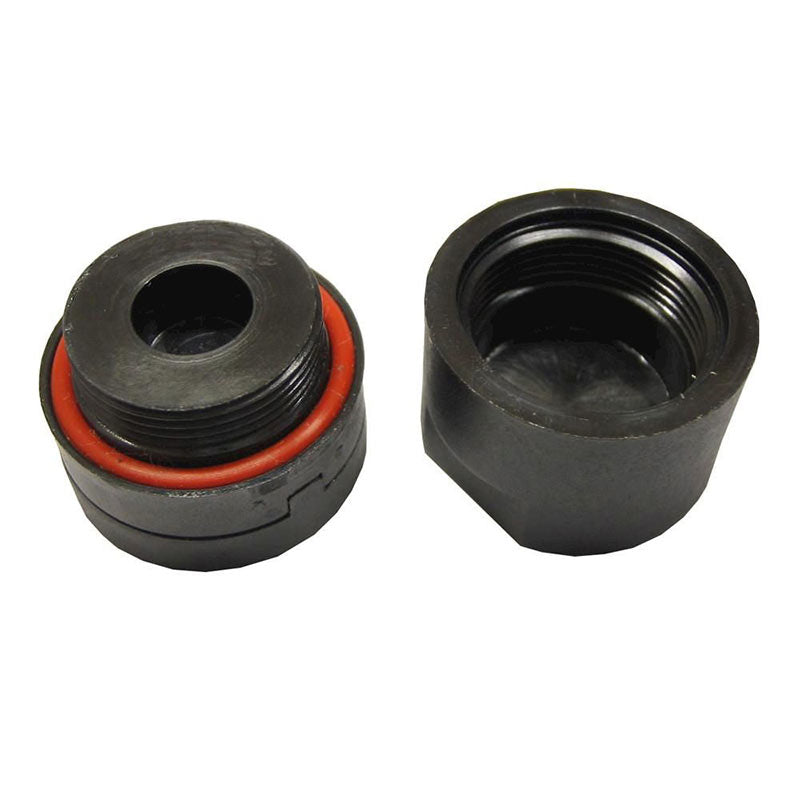

SL50-ACC03 - Plastic Enclosure
SL50-ACC03 - Plastic Enclosure
A lower cost alternative to the SL50-ACC01. The SL-ACC03 is constructed from Polyphenylene Sulphide (PPS Ryton) with black flat finish. This produces a lightweight enclosure that protects the miniature data logger at pressures up to 1 Bar or depths of 10m. Maximum operating temperature +140°C.
application examples
- Washing Machine Validation
- Submersion Up To 10m
specification
- Operating Temperature Range: -40°C to +140°C
- Dimensions: Diameter 25.4mm, Height 28.0mm
- Weight: 15g excluding data logger
- Protection: Up to 1 Bar or 10m submersion
- IP Rating: IP68
- Response Time In Water: 63% Step Change: 118 Seconds, 10% to 90% Step Change: 237 Seconds
- Response Time In Air: 63% Step Change: 407 Seconds, 10% to 90% Step Change: 827 Seconds
- O-Ring: Silicone S500-70 FDA Approved
To view the full specification please download the datasheet below.
description
The top of the lid can be removed and flipped over to reveal a hole that a wire can pass through to assist with mounting. This is ideal for being used in industrial and commerical laundry and washing machine applications.
