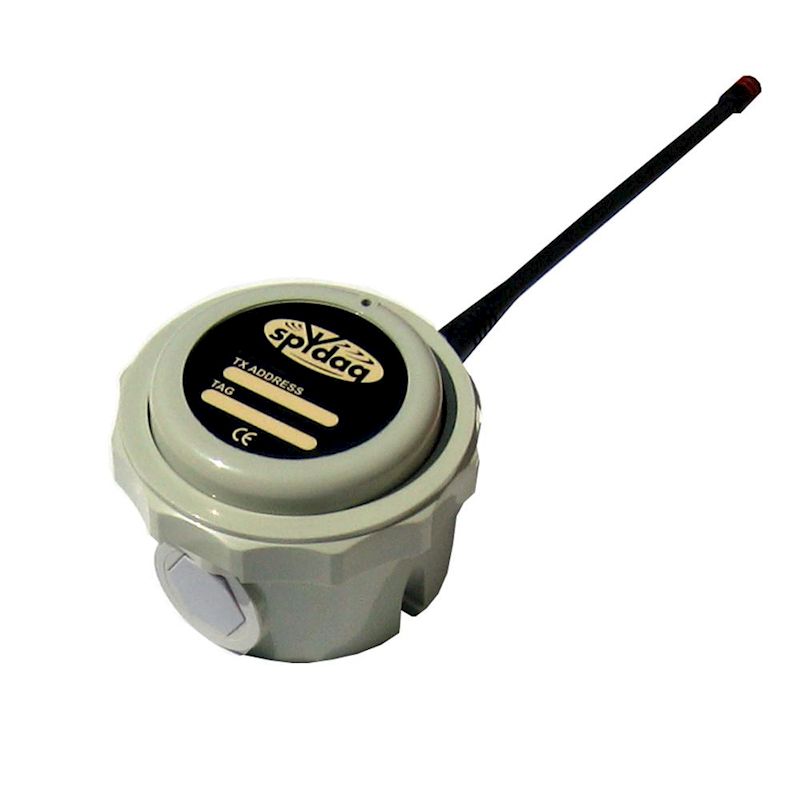

SPYDAQ-1003-T Wireless Temperature Sensor


SPYDAQ-1003-T Wireless Temperature Sensor

Wireless temperature sensor in a rugged industrial enclosure. With the temperature sensor mounted on the internal PCB, this wireless temperature sensor is ideal for monitoring temperature in areas where drafts are possible. The thermal response is slowed down due to the sensor being mounted internally. The enclosure is IP65 rated and the transmitter is battery powered for up to six years.

application examples

  • Warehouse Temperature Monitoring
  • Outdoor Temperature Recording
  • Heating & Ventilation
  • Facilities Management

specification

  • Power : Internal Lithium Primary cell. 3.7V AA Size
  • Battery Life : 6 yrs life minimum @ 10 min transmission rate
  • Measuring Range : -30°C to +75°C (-22°F to +167°F)
  • Accuracy : ±0.5°C from 0°C to +50°C. ±1°C outside of this range
  • Transmission Rate : Selectable: 20 secs, 1 min, 10 min or 30 min (10 minute recommended)
  • Transmit Power : 10mW
  • Transmission Range : Typically 400m line of sight.
  • Transmission Frequency  : 433MHz
  • Outdoor Use : Yes - IP65 Rated
  • Material : ABS
  • Warranty : 3 Years
  • Approvals / Standards : EN 12830





To view the full specification please download the datasheet below.

description

SPYDAQ-1003-T Wireless Temperature Sensor

Wireless temperature sensor in a rugged industrial enclosure. With the temperature sensor mounted on the internal PCB, this wireless temperature sensor is ideal for monitoring temperature in areas where drafts are possible. The thermal response is slowed down due to the sensor being mounted internally. The enclosure is IP65 rated and the transmitter is battery powered for up to six years.

select your product option

Quantity
SPYDAQ-1003-T £187.00 Ex.VAT
