SPYDAQ-1004-P Wireless Immersion Temperature Sensor

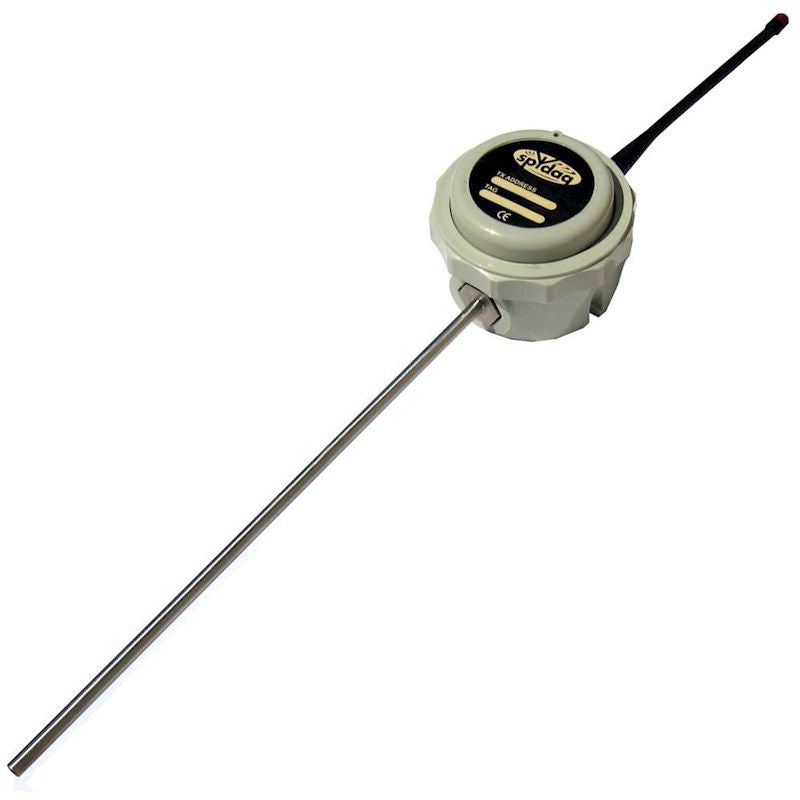

Wireless temperature sensor in a rugged, industrial enclosure with 250mm x 6mm immersion sensor. This transmitter is also supplied with 1/4" BSP brass compression gland. The enclosure is IP65 rated and the transmitter is battery powered for up to six years.


Power Internal Lithium Primary cell. 3.7V AA Size
Battery Life 6 yrs life minimum @ 10 min transmission rate
Measuring Range

-30°C to +75°C (-22°F to +167°F) for the internal temperature

-40°C to +200°C (-40°F to +392°F) for the immersion sensor


±0.5°C from 0°C to +50°C. ±1°C outside of this range for the internal sensor

±0.3°C ±0.35°% of reading for the immersion sensor

Transmission Rate Selectable: 20 secs, 1 min, 10 min or 30 min (10 minute recommended)
Transmit Power 10mW
Transmission Range Typically 400m line of sight.
Transmission Frequency  433MHz
Outdoor Use Yes - IP65 Rated
Material ABS

Enclosure: 108mm Diameter x 60mm Deep.

Immersion Sensor: 250mm Long x 6mm Diameter supplied with 1/4"BSP brass compression gland

Antenna: 172mm Long

Warranty 3 Years
