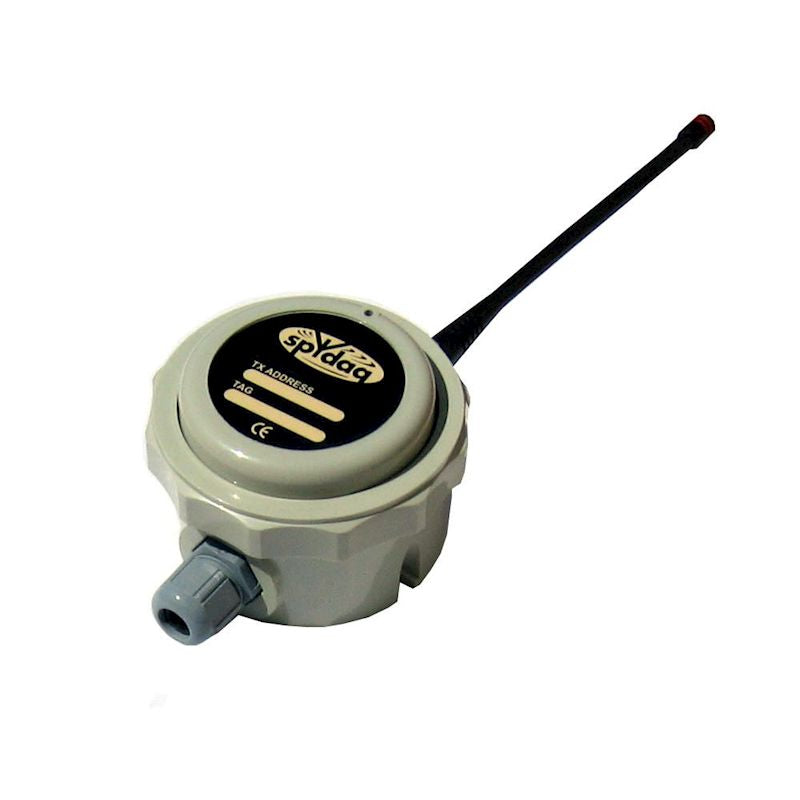

SPYDAQ-1006-U Wireless Universal Input Sensor

Wireless sensor with an internal temperature sensor to measure ambient temperature and a universal input that can be configured for any of the following inputs:

Pt 100
Thermocouple Types J, K, T, R, S
4-20 mA - Scaled in engineering units
Voltage
Contact Closure

The enclosure is IP65 rated and an IP65 rated gland is included. The transmitter is battery powered for up to six years.

Specification

Power Internal Lithium Primary cell. 3.7V AA Size
Battery Life 6 yrs life minimum @ 10 min transmission rate
Universal Input Types Pt100, Thermocouple (Types J,K,R,S & T), 4/20mA, 0-10VDC and switch closure
Ambient Temperature -30°C to +75°C (-22°F to +131°F). This is also the measuring range for the internal temperature sensor
Universal Input Measuring Ranges

Thermocouple Type
J: -180°C to +850°C
K: -160°C to +1200°C
R: +100°C to +1760°C
S: +100°C to +1760°C
T: -200°C to +400°C

Pt100
Pt100 EN60571: -200°C to +550°C
Pt100 JISC: -100°C to +450°C

Current
4/20mA

Voltage
0-10VDC

Accuracy

Internal Temperature: ±0.5°C

Thermocouple Type (not including sensor errors)
J: ±1.35°C
K: ±1.7°C
R: ±4.9°C
S: ±3.15°C
T: ±0.9°C

Pt100
Pt100 EN60571: ±0.2°C ±0.1% of reading
Pt100 JISC: ±0.2°C ±0.1% of reading

Current
4/20mA: ±5uA ±0.1% of reading

Voltage
0-10VDC: ±10mV ±0.1% of reading

Transmission Rate Selectable: 20 secs, 1 min, 10 min or 30 min (10 minute recommended)
Transmit Power 10mW
Transmission Range Typically 400m line of sight.
Transmission Frequency  433MHz
Outdoor Use Yes - IP65 Rated
Material ABS
Dimensions Enclosure: 180mm (diameter) x 60mm (Deep). Antenna: 172mm
Warranty 3 Years
