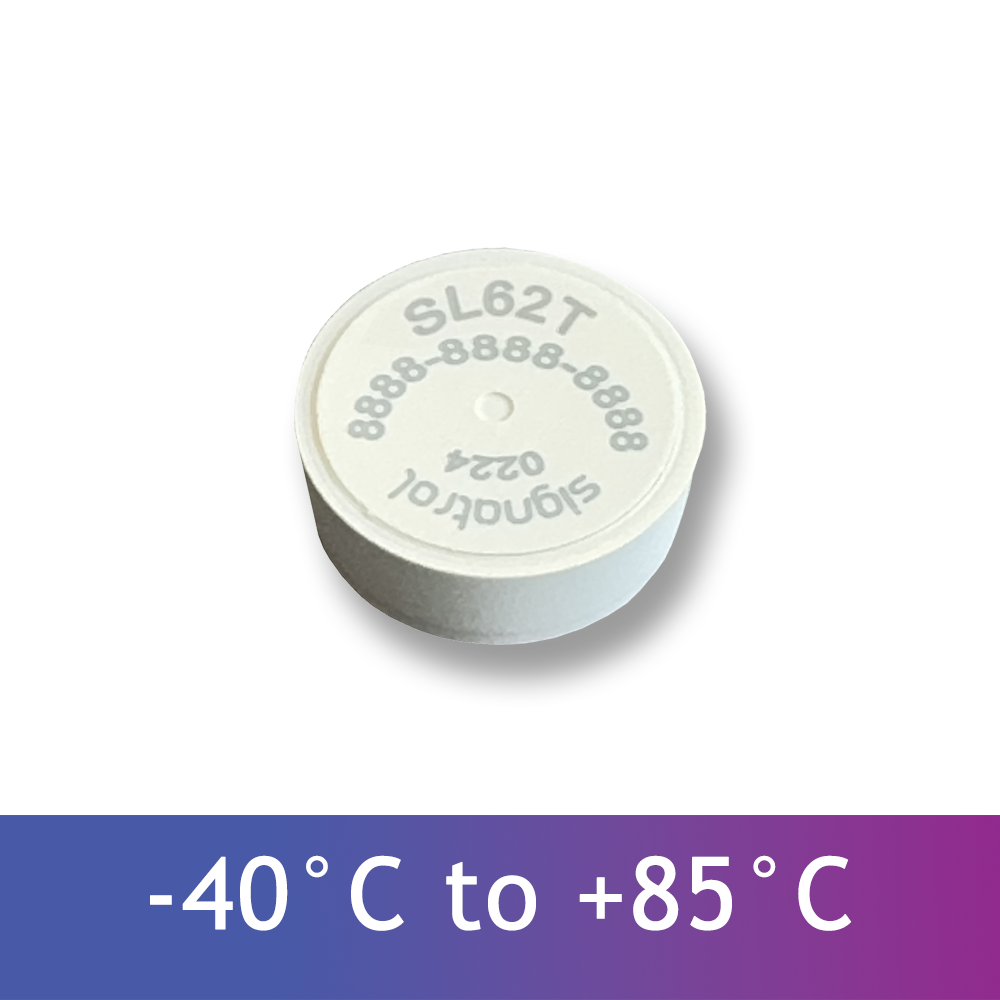

SL62T / SL62T-A Miniature Temperature Data Logger (-40°C to +85°C with up to ±0.12°C Accuracy)
The next generation of miniature temperature data loggers that measures from -40°C to +85°C (-40°F to +185°F) with an accuracy of ±0.2°C / ±0.4°F. Compared to the SL50 series data loggers, all dLog data loggers have a larger memory, improved accuracy, non-volatile memory, so the data can be downloaded should the battery be depleted and a remaining battery life indicator.
All dLog data loggers communicate with the USB-powered NFC reader. The same reader can be used with all members of the dLog family.
The SL62T / SL62T-A enclosures are constructed from food-grade materials and fully encapsulated, so they can be immersed into liquid without needing protective enclosures.
The TempIT5 software also has a remaining battery life feature, and the stored data can still be downloaded even if the data logger battery is dead.
The SL62T-A is supplied with a three-temperature point UKAS 17025 traceable calibration certificate.
Starter kits are available with either two or five SL62T or two or five SL62T-A temperature data loggers, USB interface cable and the TempIT5-PRO software.
application examples
- Fridge & Freezer Monitoring
- Goods In Transit
- Museums
- Environmental Monitoring
- Facilities Management
specification
- Power : Internal Battery
- Battery Life: Typically 2 years. Remaining battery life is shown within the TempIT5 software
- Battery Type: Panasonic BR1632A (non replaceable / non rechargeable)
- Battery Life Calculator: Click HERE
- Measuring Range: -40°C to +85°C (-40°F to +185°F)
- SL62T Accuracy: ±0.2°C (±0.4°F) from 0°C to +50°C (32°F to 122°F), see datasheet for outside of this range
- SL62T-A Accuracy: ±0.1°C ±0.1% of Calibrated Span (±0.2°F ±0.1% of Calibrated Span)
- Resolution: 0.02°C (0.04°F)
- Sample Rate: 3 seconds to 24Hours
- Maximum Number of Readings Stored: 9500
- Memory Limit: Yes, programmable total number of readings can be set
- Reusable When Memory Full: Yes
- Download Speed: Approximately 60 second for 5,000 readings.
- Weight: Approximately 6g
- Response Time: 63% step change - 90 seconds in circulating air. 10% to 90% step change - 180 seconds in circulating air
- Waterproofing: IP68 - Protected against ingress of dust and protected against the effects of continous immersion in water
- Delayed Start: Yes, you can specify a time and date to start logging up to 365 days in advance with one minute resolution
- Triggered Start: Yes, the data logger be set to start logging when the temperature goes above or below specified values
- Software Alarms: Yes, high and low alarms can be specified in the software
- Food Safe Construction: Yes
- Material: Zytel FGFE5171 Plastic intended to come into contact with food
- Dimensions: 22mm diameter x 11mm high
- Warranty : 1 Year
- Approvals / Standards : EN 12830, FDA CFR21 177.1500 & EU 10/2011
To view the full specification please download the datasheet below.
description
The SL62T & SL62T-A can be programmed to take readings from every 3 seconds to once every 24 hours. The data loggers can be programmed to start logging immediately, on a specific time and date, if the measured temperature goes above or below preprogrammed limits or even, after specific time period and also above or below preprogrammed temperature limits.
The SL62T and SL62T-A are constructed from food safe materials conformain to FDA CFR21 177.1500 and EU 10/2011. The SL62T and SL62T-A are also fully encapsulated providing IP68 (submersible) waterproofing without the need for protective enclosures.
Starter kits are available with either TWO or FIVE temperature data loggers, the USB Interface and the TempIT5-PRO software.
The SL62T is a self contained, multiple use, small temperature data logger with the ability to record up to 9,500 temperatures over the temperature range of -40°C to +85°C with an accuracy of ±0.2°C.
The SL62T-A is supplied with a UKAS Traceable calibration certificate and an improved accuracy of ±0.1°C ±0.1% of calibrated span (minimum span of 20°C). The default calibration points are -25°C, +4°C and +40°C. Contact us if you require different calibration points. You can choose any three temperature points from -19°C to +69°C and there must a a difference of 20°C or more between the highest and lowest calibration points. It is possible to have more than three calibration points but please contact us for more information.
If you require higher operating temperatures, the SL63T-A is available operating from -40°C (-40°F) to +125°C (257°F).
Being only 22mm in diameter and 11mm thick, the SL62T is an incredibly small temperature data logger, ideal for use in confined spaces.
The memory can hold up to 9,500 readings and can be cleared at the start of each data logging session, allowing the data logger to be reused over and over.
The SL60-READER NFC interface is required to connect to the USB port of the computer and is compatible with the user friendly, and free of charge, TempIT5-Lite operating software. This enables the miniature temperature data logger to be set up and the readings downloaded from the data logger and displayed in a graphical format. Data can also be saved and retrieved at a later time. The software can be upgraded to TempIT5-Pro which provides various additional features such as data table view, export data to spreadsheet, graph annotations, and automated MKT, F0, A0 and PU calculations.
The NFC USB Interface lead and software are not included with this temperature data logger unless you purchase one or more of the starter kits but you can find details of these and other related items in the accessories section.
